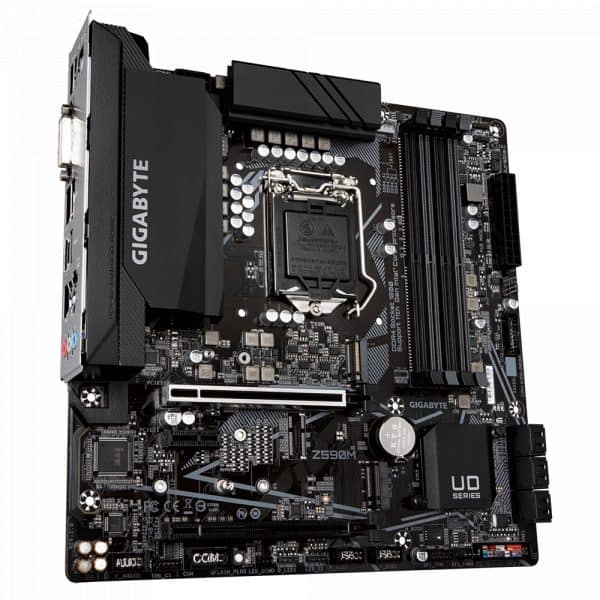

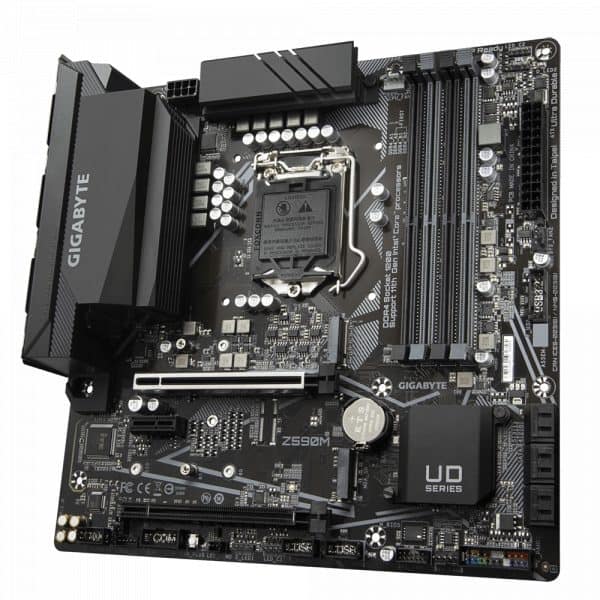

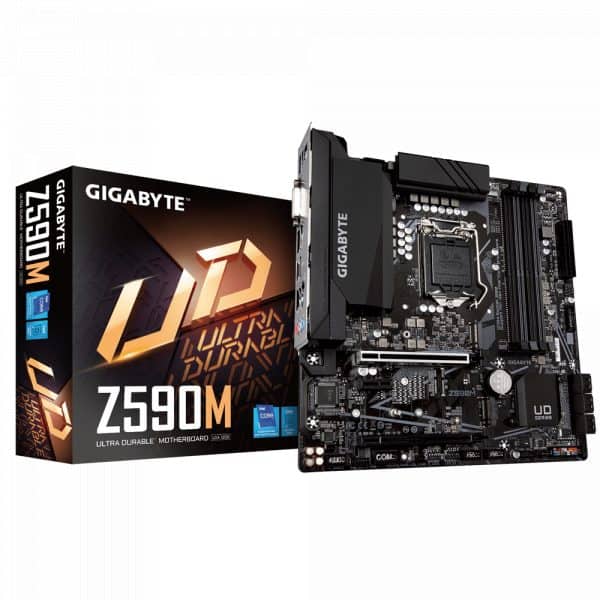

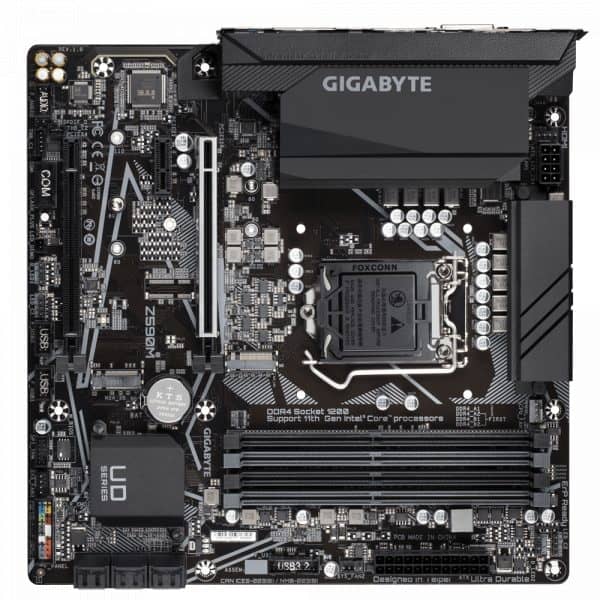

Gigabyte Intel® Z590M Ultra Durable Motherboard with Direct 8+1 Phases Digital VRM and DrMOS, Full PCIe 4.0* Design, Extended Thermal Design with Integrated IO Armor, PCIe 4.0 M.2, Intel® GbE LAN, USB TYPE-C®, RGB FUSION 2.0, Q-Flash Plus

Availability:

In stock


  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 8+1 Phases Digital VRM Solution with 50A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Enlarged VRM Heatsink with Air-Flow Grooving to increased surface contact
  • Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • USB 3.2 Gen2 and USB Type-C® for Fast and Versatile Connections
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

15,800 19,999

In stock

Power Efficiency

Direct 8+1 Phases Digital VRM Solution with DrMOS

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

  • Digital PWM Controller to deliver appropriate voltage to the CPU.
  • Direct 8+1 Phases DrMOS without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 400 Amps current in total.
  • All-solid capacitors to improve transient response and minimize oscillation.
  • 8 Solid Pin CPU Power Connector.
  • Advanced Thermal Design with Integrated IO Armor
  • Dual PCIe 4.0/3.0 x4 M.2 Connectors
    GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
  • RGB FUSION 2.0

    With Z590M Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z590 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

    With Z590M Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

    * Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.
    Solid Pin Power Connectors
    Z590 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
    Solid Pin Power connector advantages
    1. Larger contact area for electricity
    2. More metal quantity to sustain higher power and generated heat
    3. Ultra durable and longer lifespan

SKU: GAZ590M Categories: , ,
Weight 3 kg
Dimensions 12 × 9 × 4 in

Technical Specifications

CPU LGA1200 package:

  1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
    * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
  3. L3 cache varies with CPU
Chipset
  1. Intel® Z590 Express Chipset
Memory
  1. 11th Generation Intel® Core™ i9/i7/i5 processors:
    Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
  2. 10th Generation Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)

Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
  2. 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

USB Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  4. 4 x USB 2.0/1.1 ports available through the internal USB headers
 Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 2 x addressable LED strip headers
  6. 2 x RGB LED strip headers
  7. 6 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 1 x USB 3.2 Gen 1 header
  13. 2 x USB 2.0/1.1 headers
  14. 2 x Thunderbolt™ add-in card connectors
  15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  16. 1 x serial port header
  17. 1 x Clear CMOS jumper
  18. 1 x Q-Flash Plus button

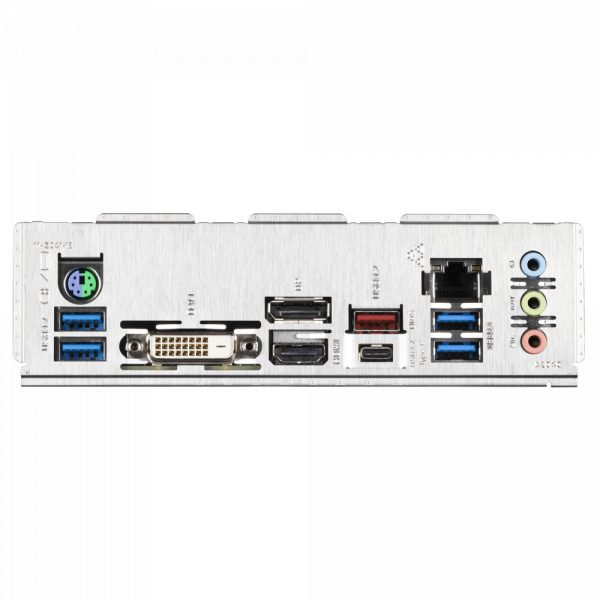

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  3. 1 x USB 3.2 Gen 2 Type-A port (red)
  4. 4 x USB 3.2 Gen 1 ports
  5. 1 x DVI-D port
  6. 1 x DisplayPort
  7. 1 x HDMI port
  8. 1 x RJ-45 port
  9. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
 Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
