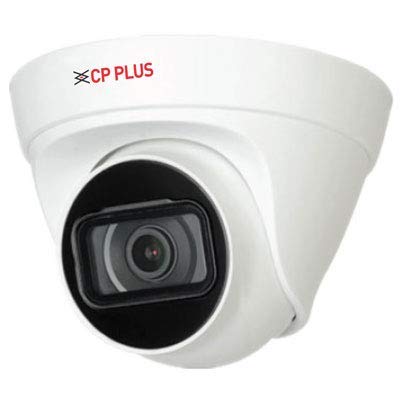

CP PLUS CP-UNC-DA21PL3 Security Camera (1 Channel)

CP Plus

In stock


  • Brand USEWELL
  • Video Capture Resolution 1080p
  • Video Capture Format MP4

3,169 5,300

In stock

Image Sensor 1/2.7” 2MP PS CMOS Image Sensor Minimum Illumination 0.09Lux/F2.0(Color,1/3s,30IRE) 0.5Lux/F2.0(Color,1/30s,30IRE) 0Lux/F2.0(IR on) Effective Pixels 1920(H)x1080(V) White Balance Auto/Natural/Street Lamp/Outdoor/Manual Lens 2.8mm fixed lens (3.6mm optional) Gain Control (AGC) Auto/Manual Video Compression H.265+/H.265/H.264+/H.264H/MJPEG(Sub Stream) Angle of View H:115°/87.5°, V:60°/47° S/N Ratio More than 50dB Back Light Comp. BLC/ HLC/ DWDR Frame Rate Main Stream: 1080P (1 ~ 20fps) ,Sub Stream: D1(1 ~ 25/30fps) Digital Zoom 16x Resolution 1080P(1920×1080)/1.3MP(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240) Motion Detection Off / On (4 Zone, Rectangle) Privacy Mask Off / On (4 Area, Rectangle) ICR Auto(ICR)/Color/B/W ROI Off / On (4 Zone) Bit Rate H265: 12K~5632K , H.264: 32K ~8192K Protocol HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;NTP;Multicas; ICMP; TLS; ONVIF Profile S&G Ethernet RJ-45 (10/100Base-T) User Account 20 Users Smart Phone iPhone, iPad, Android Phone IR Range IR Range of 30 Mtr. Operating Temperature -30°C~+60°C , Less than 95%RH Power Source DC12V, PoE (802.3af) Power Source DC12V, PoE (802.3af) Power Consumption <4.8W Weatherproof Standard IP67 Dimension ?109mm×85.5mm(4.29”x3.36”) Weight 0.24Kg
Weight 1 kg
Dimensions 5 × 5 × 5 in

Sales Package
  • 1 Camera
Model Number
  • CP-UNC-DA21PL3
Number of Channels
  • 1
Camera Type
  • Dome IP
Video Output
Video Recording Resolution
  • 1080p
Video Recording Frame Rate
  • Main Stream: 1080P (1 ~ 20fps) ,Sub Stream: D1(1 ~ 25/30fps)
Product Details
HDD Available
  • No
Compatible Devices
  • Monitor
Motion Triggered Recording
  • Yes
Storage Type
  • HDD
Additional Features
Application Support
  • iCMOB, gCMOB
  • Fiber
Model Name
  • CP-UNC-DA21PL3
  • White
Warranty Summary
  • 2 Year Manufacture Warranty
Warranty Service Type
  • Manufacturer
Covered in Warranty
  • Main unit covered in warranty
Not Covered in Warranty
  • Physical Damage & Burning are not covering in Warranty
Domestic Warranty
  • 2 Year
International Warranty
  • 1 Months
