AVerMedia EZMaker USB SDK

Availability:

In stock


  • Image/Video Capturing
  • Take Snapshots in BMP or JPG
  • Capture Serial Fields in BMP, JPG or AVI
  • Supports NTSC and PAL
  • Various Programming Languages Supported

4,999

In stock

Product Description

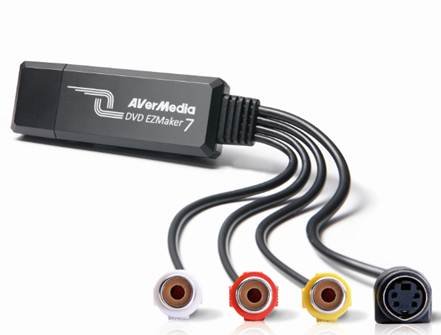

The AVerMedia EZMaker USB SDK is a USB video capture device with both S-Video and composite inputs. The accompanying software development kit provides frequently used functions to help developers and system integrators complete their tasks easily and efficiently. Even better, it is also compatible with major programming languages such as Visual C++ and Visual Basic.

Digitize Analog Video Effortlessly

The AVerMedia EZMaker USB SDK allows you to capture true color video sources and images from any type of analog video equipment through S-Video/composite video inputs. Its portability makes it the best solution for mobile applications such as mobile monitoring and analysis.

Exclusive Software Development Kit (SDK)

The enclosed SDK provides a complete tool kit to develop software via various programming languages. You can utilize the API to call up the appropriate functions and libraries in our SDK. It can help you to reduce noise, downscale frame rates, overlay a second video over the current one, adjust color or de-interlace. Even better, it is also compatible with major programming languages like Visual C++ and Visual Basic!

High Quality API Solutions

The AVerMedia EZMaker USB SDK provides users with a powerful set of API in DLL modules for more convenient and efficient development experiences, such as the option of capturing and previewing content in a video window. Users can also add customized text, dates and timestamps to a video.

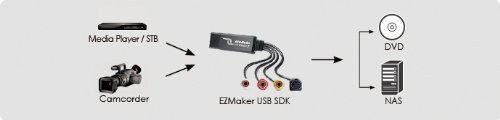

EZMaker USB SDK can capture with both S-Video and composite inputs& keep files to DVD and NAS

SKU: EZMAKERUSBSDK Category:
Weight 1.0 kg
Dimensions 5 × 5 × 5 in

Technical Details

Interface USB 2.0
Input Composite/ S-Video/ Audio L/R
Input Video Resolution 720 x 480@60i, 720 x 576@50i
Capture Video format NTSC/PAL:
80 x 60 (NTSC only), 88 x 72, 128 x 96, 160 x 120, 176 x 144, 240 x 180, 240 x 176, 320 x 240, 352 x 240, 352 x 288, 640 x 240,
640 x 288, 640 x 480, 704 x 576 (PAL, SECAM only), 720 x 240, 720 x 288, 720 x 480, 720 x 576 (PAL, SECAM only)
Pixel Format NTSC: YUY2 (4:2:2), UYVY (4:2:2)
PAL/SECAM: YUY2 (4:2:2), UYVY (4:2:2), Y8
Color Adjustment Brightness, Contrast, Hue, Saturation, Sharpness
Multi-Card Support Yes
Programming Language VB, VC, Delphi, C#, VB.NET
SDK Framework General DLL
Operating Environment Temperature: 0 to +45 ℃
Humidity: 0 to 80% RHNC
Storage Environment Temperature: -30 to +65 ℃
Humidity: 0 to 90% RHNC
Power Requirement 5V max 2.06A
Dimensions (mm) 82(L) x 28.49(W) x 14(H)
CPU For SD Video Capturing (AVI Format)
-Intel® Pentium® 4.3.0G (HT)
-AMD Athlon™ 64 3200+
-Intel® Pentium® Mobile Processor 2.0G or AMD equivalent
Memory 512 MB RAM or above
VGA VGA card with support for DirectX9.0c or above
Sound Card Yes
Interface USB 2.0 Port
Supported OS Win 7/ 8.1/10 (32/64 bits)*
