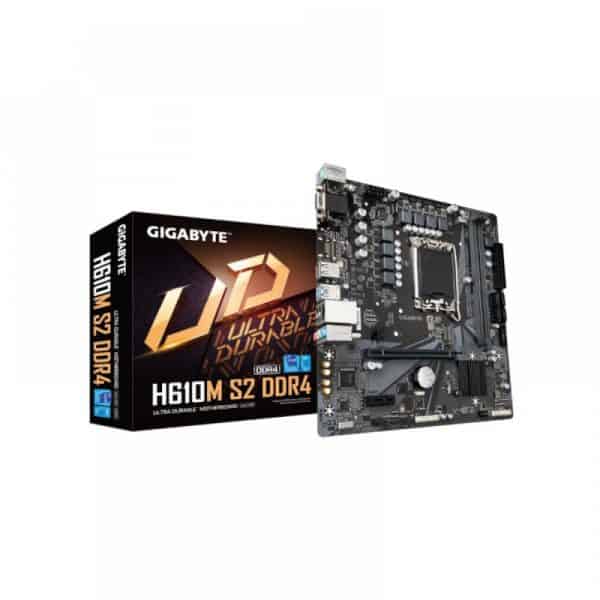

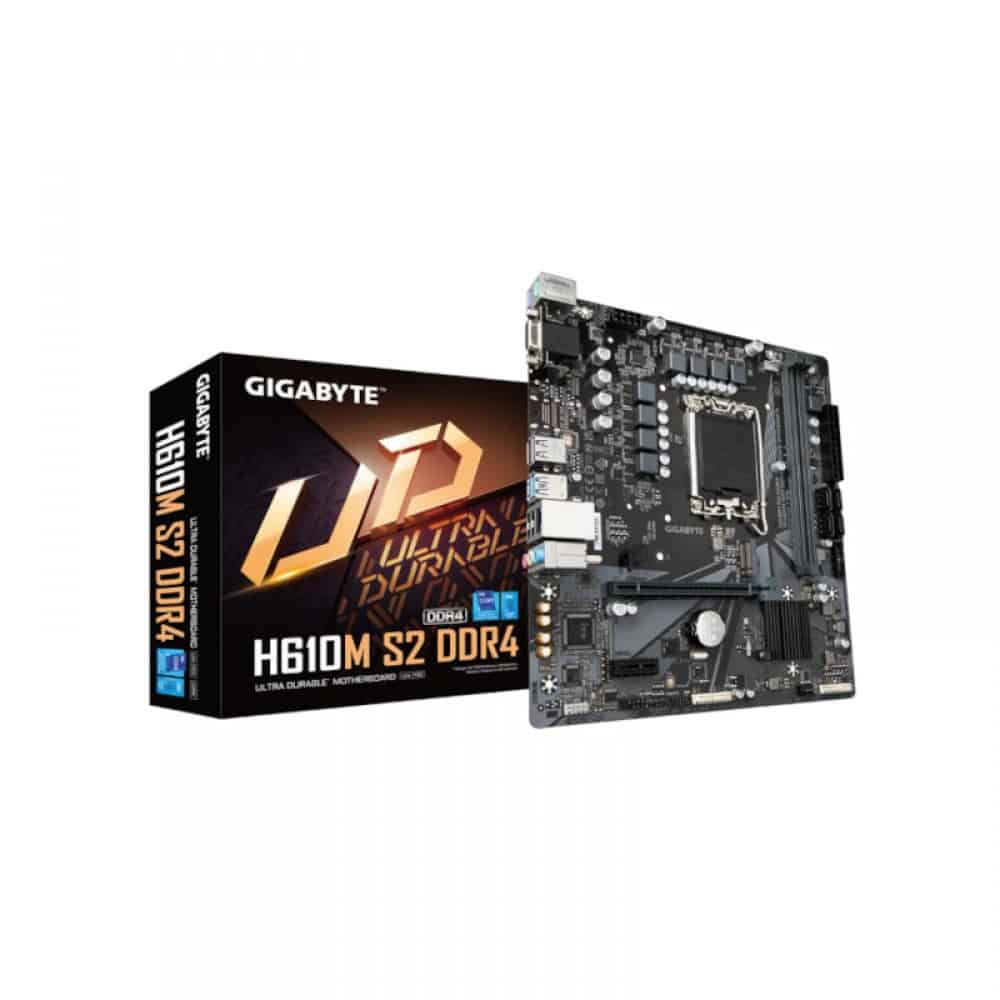

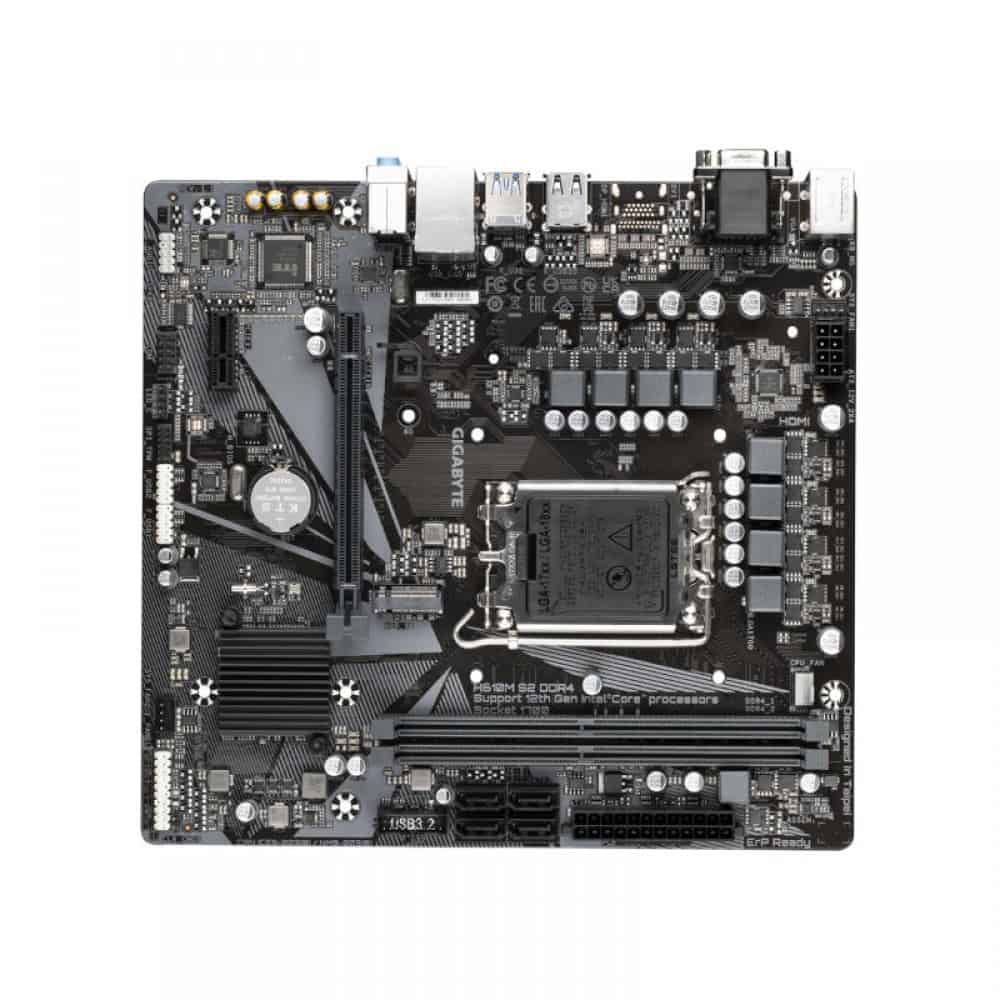

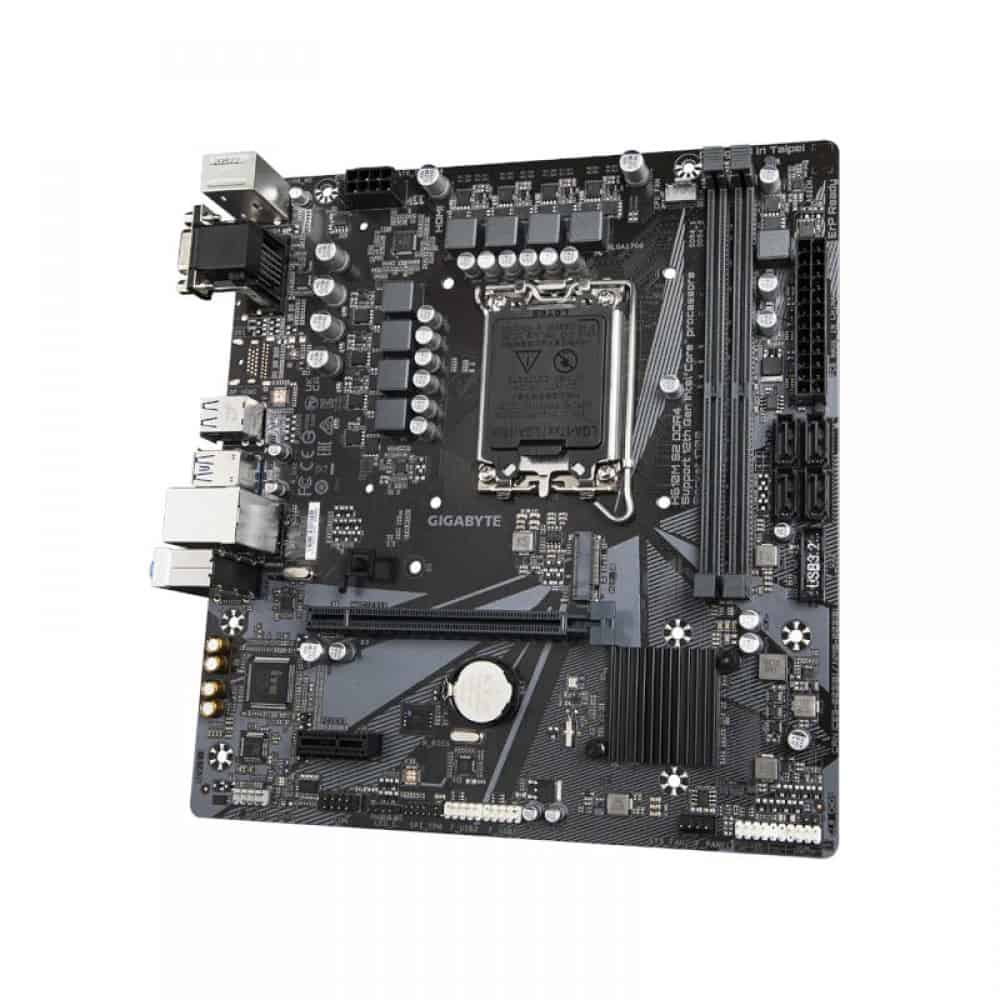

Gigabyte H610M S2 DDR4 Motherboard

Gigabyte
Availability:

In stock
  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • GIGABYTE Gaming LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

₹7,430 ₹12,099

In stock

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • GIGABYTE Gaming LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
SKU: GAH610MS2DDR4 Categories: , , , ,
Weight 3.0 kg
Dimensions 15 × 15 × 15 in
Brands

Technical Details

CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.
Chipset Intel® H610 Express Chipset
Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

(Graphics specifications may vary depending on CPU support.)
Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots 1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Storage Interface Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors
USB Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

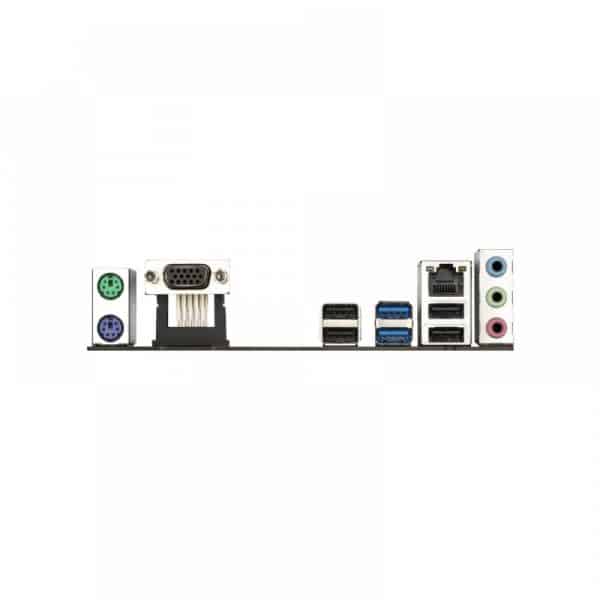

Back Panel Connectors 1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information ViewerSupport for Q-FlashSupport for Xpress Install
Bundled Software Norton® Internet Security (OEM version)

LAN bandwidth management software
Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
