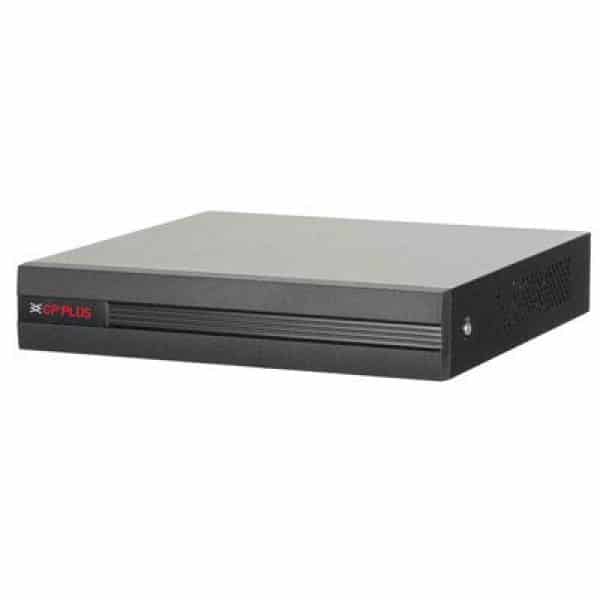

CP PLUS 16 CHANNEL DVR CP-UVR-1601E1-HC

ProcessorEmbedded processor Operating SystemEmbedded LINUX IP Camera Input16+2, each channel up to 2MP Two-way TalkReuse audio in/out, RCA User InterfaceGUI Video Input16 channel, BNC Video Output1 HDMI, 1 VGA CompressionH.265+/H.265/H.264+/H.264 Video Resolution1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF Video RecordingMain Stream:1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps), Sub stream: CIF/QCIF (1~7fps) Video Display Split1/4/8/9/16 Audio Input1 channel, RCA Audio Output1 channel, RCA Motion DetectionMD Zones: 396 (22 × 18) Video LossSupports Camera BlankSupports Hard Disk1 SATA port, up to 6TB Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second) PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom Backup ModeUSB Device/Network Interface Ports1 HDMI, 1 VGA, 2 USB2.0 Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Max User Account128 users EthernetRJ-45 port (100M) ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, ONVIF 16.12, CGI Conformant Power SupplyDC12V/2A Power Consumption<10W(without HDD) Working Temp-10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH Dimension260mm x 236mm x 48mm Weight0.80kg (without HDD)Product Description
